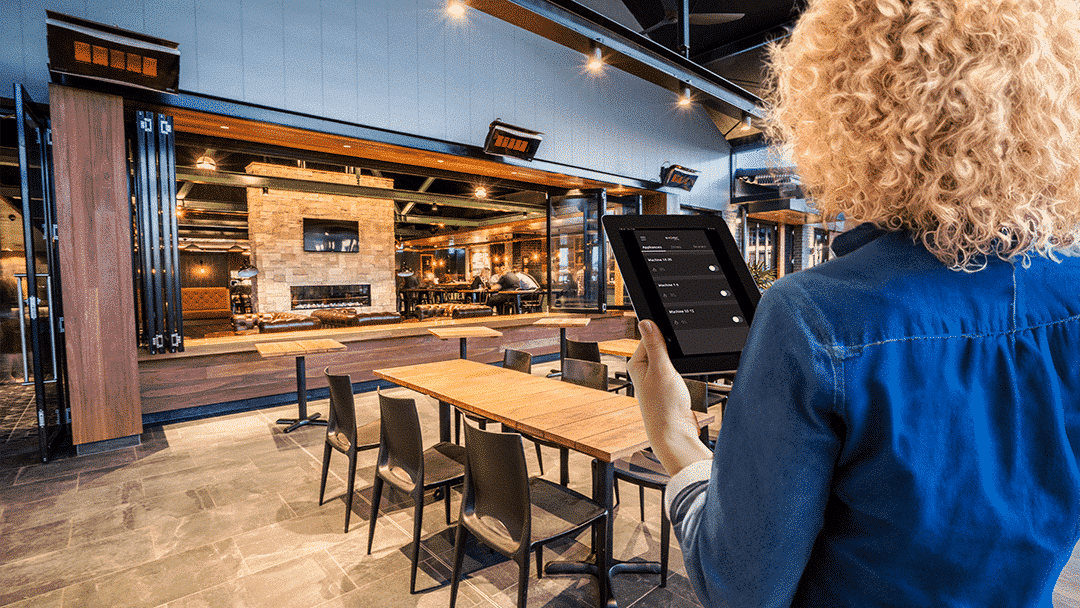

Bromic Affinity Smart-Heat On/Off Controller — overview image of the smart heater control range

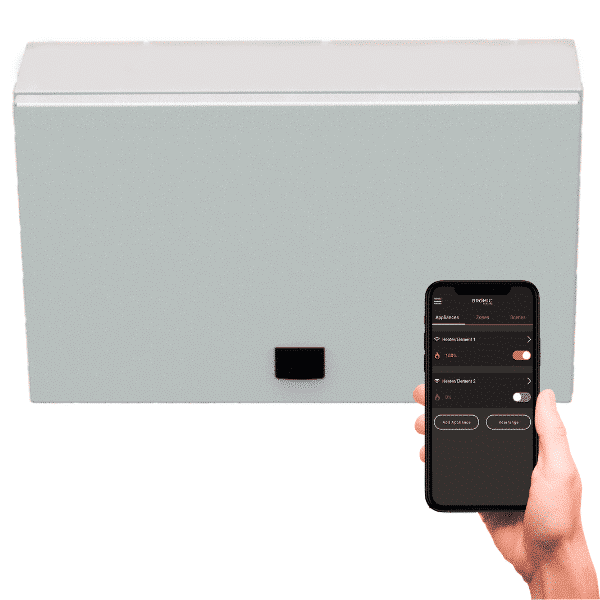

Bromic Affinity Smart-Heat On/Off Controller — 5 channel model, 500 × 340 × 202 mm

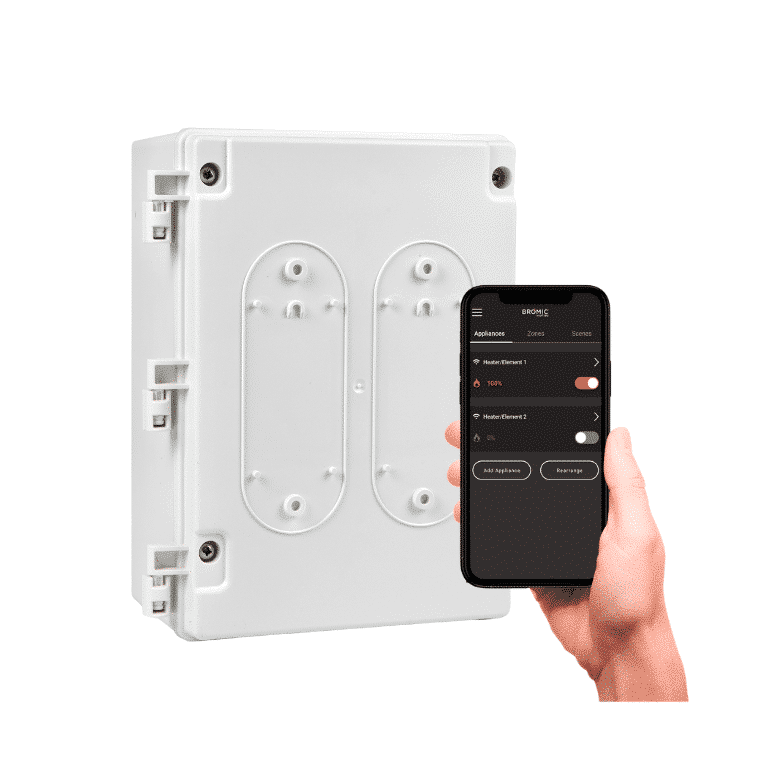

Bromic Affinity Smart-Heat On/Off Controller — controller enclosure for outdoor heating
Bromic Affinity Smart-Heat On/Off Controller — outdoor heater control range in 1, 2 and 5 channel options
Bromic Affinity Smart-Heat On/Off Controller — overview image of the smart heater control range
Bromic Affinity Smart-Heat On/Off Controller — 5 channel model, 500 × 340 × 202 mm
Bromic Affinity Smart-Heat On/Off Controller — controller enclosure for outdoor heating

Affinity Smart-Heat On/Off Controller

Affinity Smart-Heat On/Off Controller

  • Switch compatible Bromic Platinum and Tungsten gas or electric heaters on or off at full output, without dimming.
  • Choose a 1, 2 or 5 channel controller to suit the number of heating zones in your space.
  • Each channel can control up to 6 kW of electric heating or up to 10 compatible gas heaters, subject to the installation requirements of the connected heaters.
  • Connect through 2.4 GHz Wi-Fi or Bluetooth to manage heaters using the Bromic Heating App.
  • Use the app to group heaters into zones and set timers or schedules; scheduled shut-off requires a Wi-Fi connection.
  • The 1 and 2 channel models can connect to compatible home or building automation systems with an optional expansion board.
  • The 5 channel, three-phase model includes an expansion board for Ethernet connectivity or 0–10 V automation integration.
  • IP54 rated enclosure. The 1 and 2 channel units measure 290 × 202 × 112 mm; the 5 channel unit measures 500 × 340 × 202 mm.

On/Off Controller

W290 - 500mm

D202 - 340mm

H112 - 202mm

Product Dimensions

Download Brochure

Instruction Manual

Warranty Image 1

1 Year Warranty

Learn more about Bromic Warranty Here

Seen the same elsewhere? Talk to us today.

Looking for payment plans?
We have long term payment plans available with QCard and GEM

Made to Order - Enquire for ETA

$629.00
$0.00 $629.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Frequently Asked Questions

Does the Affinity On/Off Controller dim heater output?

No. The On/Off Controller switches connected heaters on or off at full power. Choose an Affinity Dimmer Controller if you need to adjust the heat output in smaller increments.

What is the difference between the 1, 2 and 5 channel models?

The models have one, two or five channels for organising connected heaters. Each channel supports up to 6 kW of compatible electric heating or up to 10 compatible gas heaters, subject to the heater and installation requirements.

Can I connect the On/Off Controller to a home or business automation system?

Yes. The 1 and 2 channel models require an optional expansion board for Ethernet or 0–10 V integration. An expansion board is included with the 5 channel, three-phase model.
